All Gypsum Cell

Gypsum Cell

64546M15

Indoor / Recessed Downlights

Downlights

3 x powerLEDs 6 W DC 630 mA

IP
IP20
Optic
Spot
Degrees
12.8°
CCT
2700 K
CRI
90
Delivered lumens
316 lm
Finishes
Black
Installation position
Ceiling
Control
Efficiency
52.7 lm/W
Source Type
powerLEDs

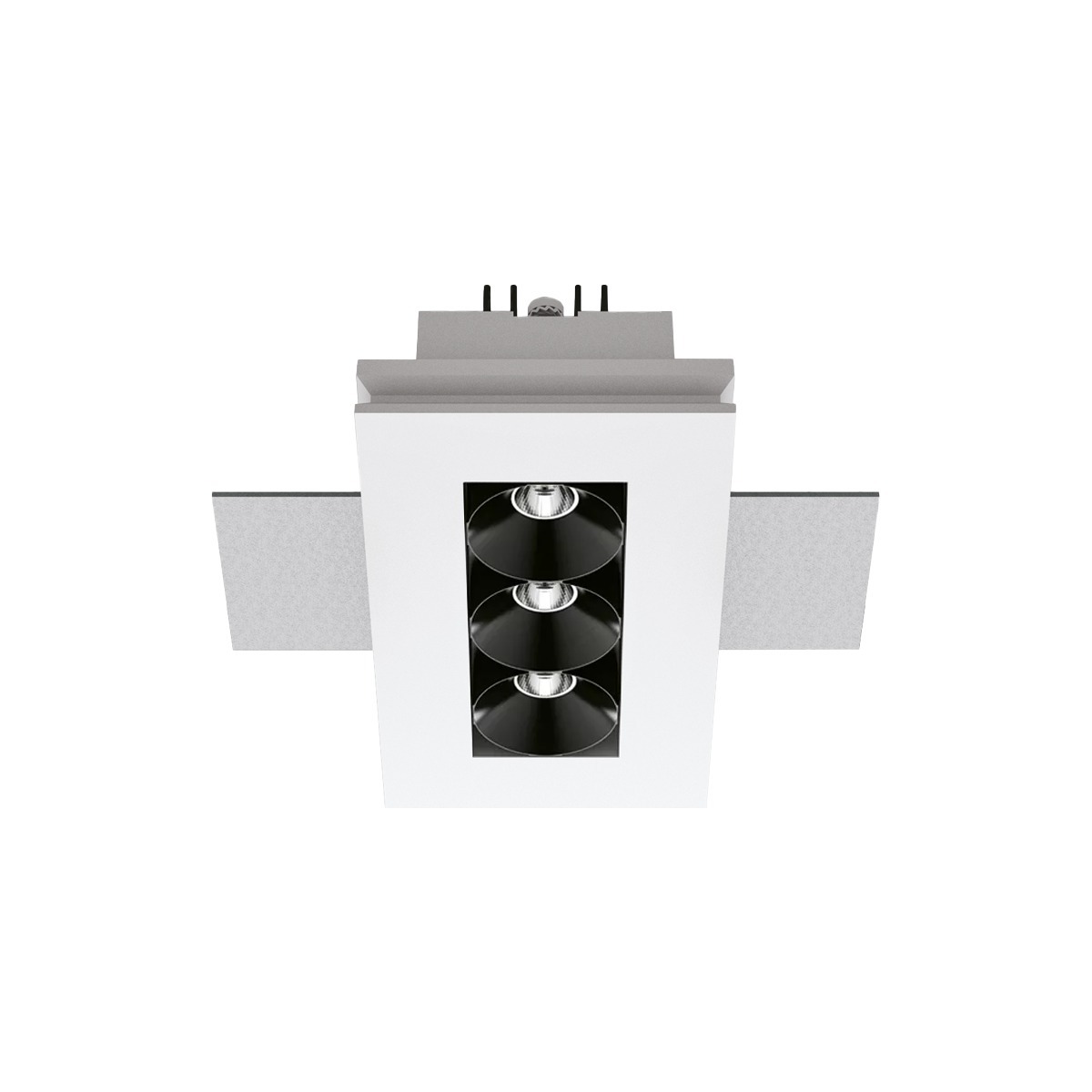

Single emission recessed downlights for indoor application. The super warm white LED light source with a spot light distribution is composed of 3 powerled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 597 lm, with a 99.5 lm/W nominal luminous efficacy.

The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length.

The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 99376

Slim - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Slim - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC
.zip

Code 99105

Leon - On/Off Driver | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Leon - On/Off Driver | On/Off Driver 198~264V AC
.zip

Code C-E100001

Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W | Push and Simply Dim Multi Power 198~264V AC / 180~275V DC

FamilyMulti Power
IPIP40
OperationCC
Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W | Push and Simply Dim Multi Power 198~264V AC / 180~275V DC
.zip

Code 99115

Boson - 0/1-10V N/O button Multi Current - 1-15 W DC powerLEDs - 350mA 45V / 15 W DC topLED - 350mA 39V / 1.5-18 W DC powerLEDs - 500mA 39V / 19 W DC topLED - 500mA 39V / 2-20 W DC powerLEDs - 630mA 33V | 1-10V N/O button Multi Power 198~264V AC / 180~275V DC

FamilyMulti Power
IPIP40
OperationCC
Boson - 0/1-10V N/O button Multi Current - 1-15 W DC powerLEDs - 350mA 45V / 15 W DC topLED - 350mA 39V / 1.5-18 W DC powerLEDs - 500mA 39V / 19 W DC topLED - 500mA 39V / 2-20 W DC powerLEDs - 630mA 33V | 1-10V N/O button Multi Power 198~264V AC / 180~275V DC
.zip
