Gemini_W1
9673M
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
72 topLED 25 W DC - 28 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 180° |
| CCT | 2700 K |
| CRI | 90 |
| Delivered lumens | 1540 lm |

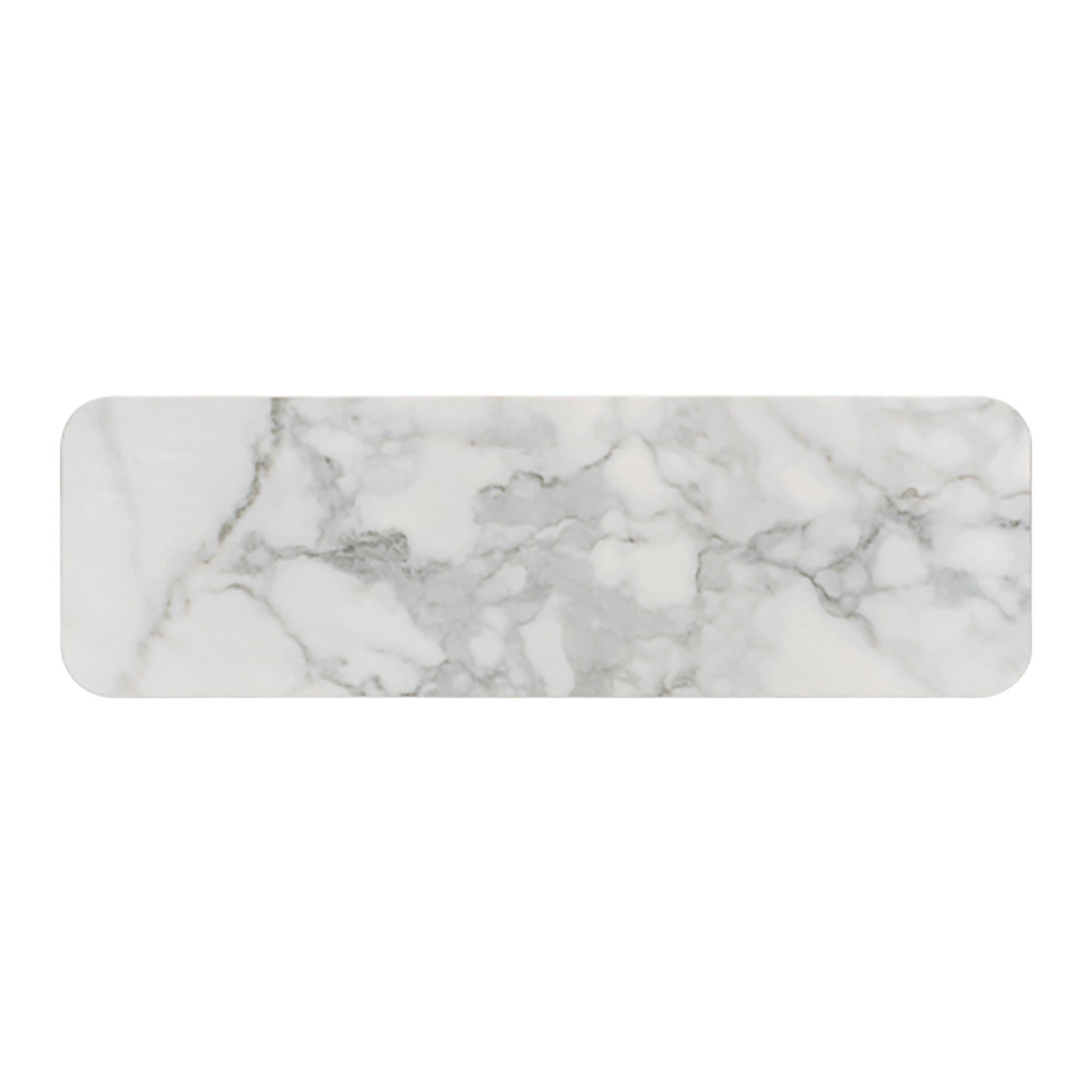

| Finishes | Statuary |
| Installation position | Wall lights |
| Control | PHASE-CUT |
| Efficiency | 55.0 lm/W |
| Source Type | topLED |
Technical description
Double emission wall lights for indoor application. The super warm white LED light source with a diffused light distribution is composed of 72 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 2272 lm, with a 90.9 lm/W nominal luminous efficacy.
; the diffuser is made of pmma with a satin finishing treatment; the mounting frame is made of aluminium, with a white finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 2.000 kg.
The total absorbed power is 28 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
