Halfpipe 2_FL
9816
Indoor / Table and Floor Lamps
Floor Lamp | 220-240 V
2 topLED 32 W DC - 35 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 24.4° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 1268 lm |
| Finishes | Black |
| Installation position | Floor |
| Control | |
| Efficiency | 36.2 lm/W |
| Source Type | topLED |

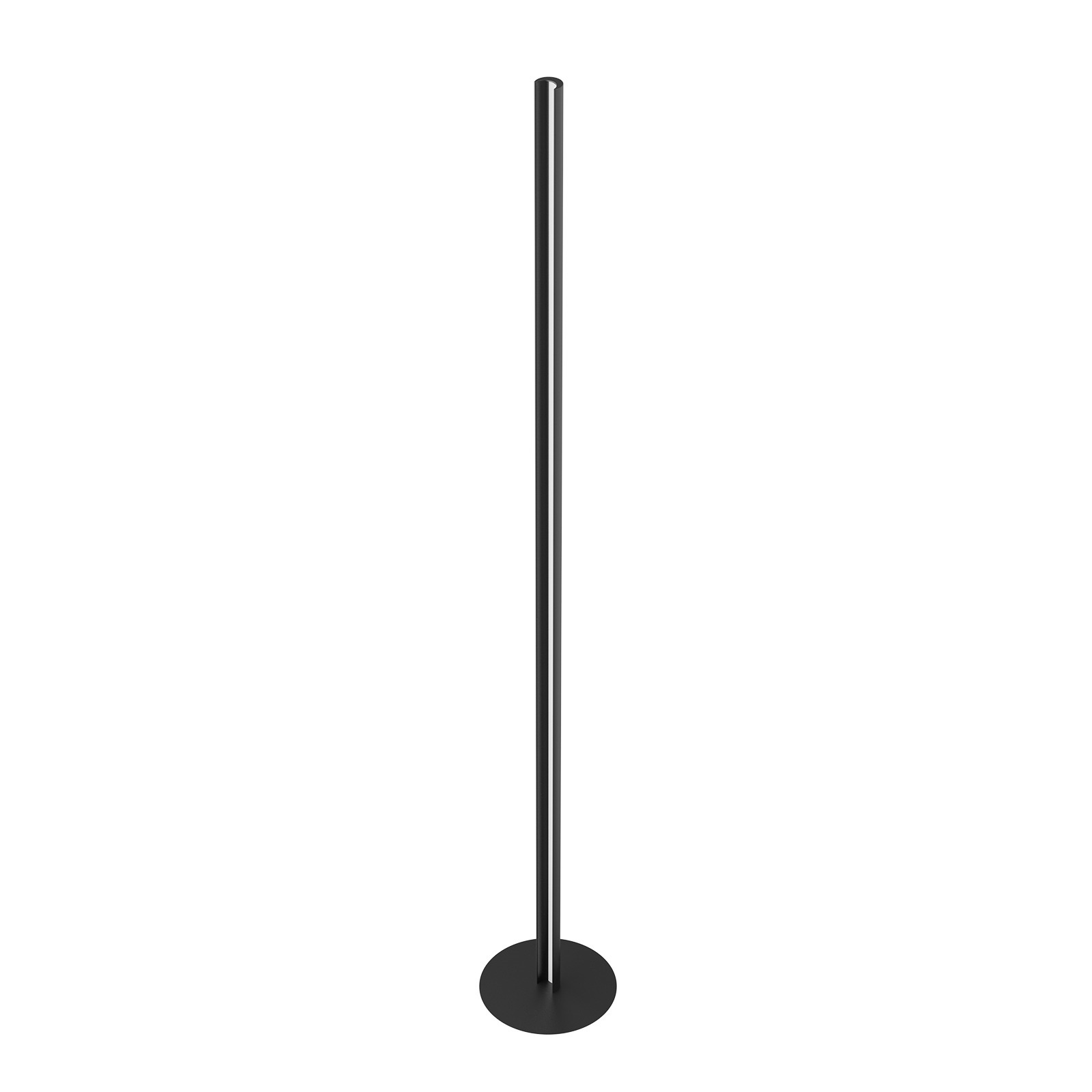

Technical description
Single emission floor lamp for indoor application. The warm white LED light source with a diffused light distribution is composed of 288 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3590 lm, with a 112.2 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a black finish, processed by means of coating; the diffuser is made of PC; the mounting frame is made of iron, with a black finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 5.200 kg.
The total absorbed power is 35 W. The power supply cable is included and features a 3.5 m length.
The device features protection class II and can be floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
