One to One_C
7619
Indoor / Recessed Downlights
Downlights
1 arrayLED 8 W DC 500 mA
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 37.8° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 820 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 82.0 lm/W |
| Source Type | arrayLED |
Technical description

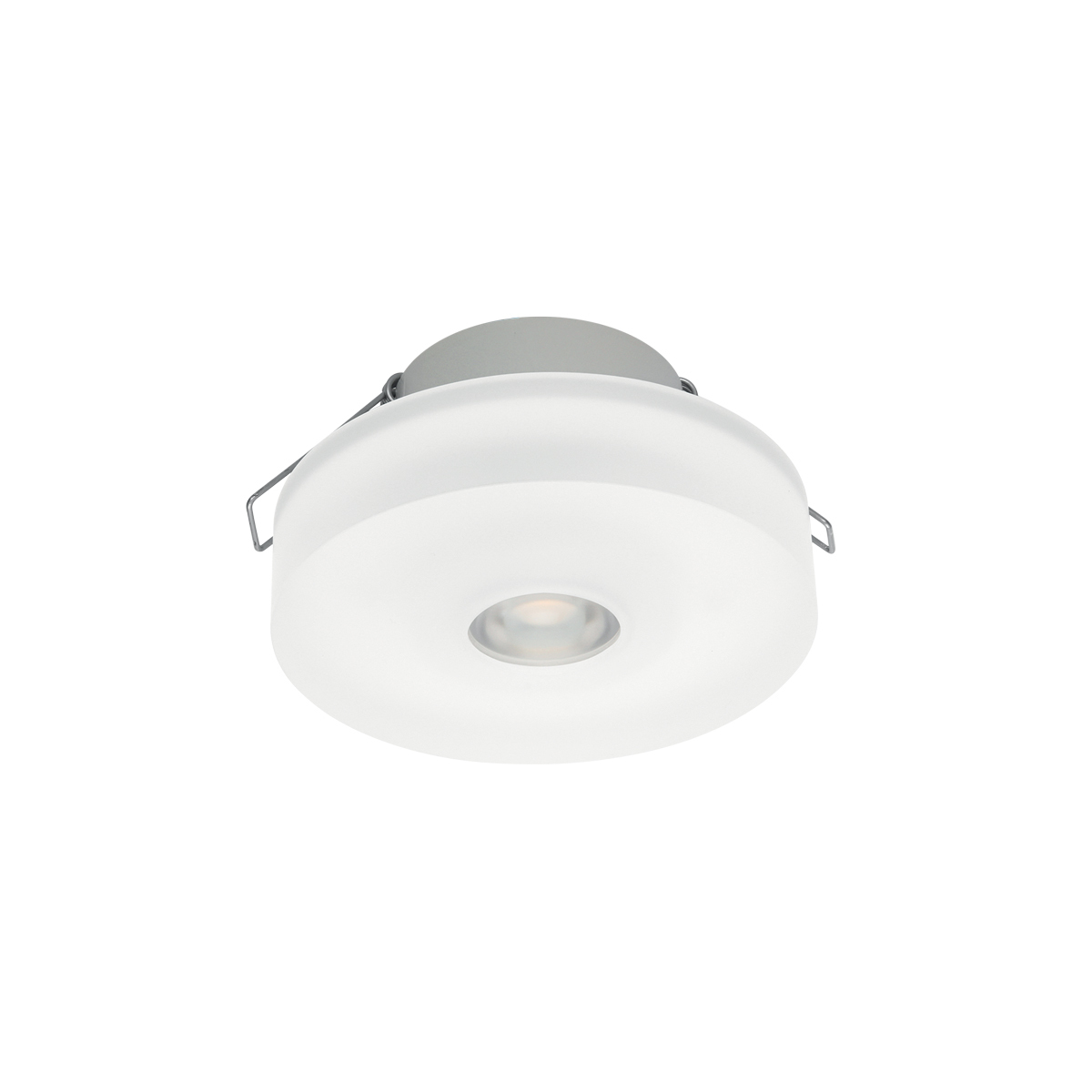

Single emission recessed downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1082 lm, with a 135.3 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a white finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 0.430 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 8 W.
The device features protection class III and can be ceiling-mounted, with a 65 mm diameter hole (in plasterboard).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code KIT0064
Driver Phase-Cut 10W 500mA 6-20V | Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
Code KIT0065
Driver Phase-Cut 21W 500mA 27-42V | Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
