Luno_20-27

C-K100017

New

Indoor / Flex Lights

Round surface profile

Anodised aluminium

Delivered lumens	--
Finishes	Anodized aluminum
Installation position	Wall lights, Ceiling

Technical description

Single emission for indoor application.

The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation.

and can be wall lights or ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Compatible products

Ribbon PRO

Discover more

15 product codes

Ribbon PRO

LED Strip | 400 topLED 18 W DC 24 V

3.6 W/m | 511.6 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82123	18 W	2558 lm	2700 K	Diffused	>90
82124	18 W	2590 lm	3000 K	Diffused	>90
82125	18 W	2754 lm	4000 K	Diffused	>90

Ribbon PRO

LED Strip | 640 topLED 68 W DC 24 V

13.6 W/m | 1889.4 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82162	68 W	9447 lm	2700 K	Diffused	>90
82163	68 W	9806 lm	3000 K	Diffused	>90
82164	68 W	10489 lm	4000 K	Diffused	>90

Ribbon PRO

LED Strip | 800 topLED 84 W DC 24 V

16.8 W/m | 2371.4 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82168	84 W	11857 lm	2700 K	Diffused	>90
82169	84 W	12098 lm	3000 K	Diffused	>90
82170	84 W	13013 lm	4000 K	Diffused	>90

Ribbon PRO

LED Strip | 400 topLED 48 W DC 24 V

9.6 W/m | 1367 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82129	48 W	6835 lm	2700 K	Diffused	>90
82130	48 W	7088 lm	3000 K	Diffused	>90
82131	48 W	7519 lm	4000 K	Diffused	>90

Ribbon PRO

LED Strip | 640 topLED 33.5 W DC 24 V

6.7 W/m | 927.6 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82156	33.5 W	4638 lm	2700 K	Diffused	>90
82157	33.5 W	4791 lm	3000 K	Diffused	>90
82158	33.5 W	5115 lm	4000 K	Diffused	>90

Ribbon Plus

Discover more

18 product codes

Ribbon Plus

LED Strip | 700 topLED 72 W DC 24 V

14.4 W/m | 1762 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82192	72 W	8810 lm	2700 K	Diffused	>90
82193	72 W	9350 lm	3000 K	Diffused	>90
82194	72 W	10110 lm	4000 K	Diffused	>90

Ribbon Plus

LED Strip | 350 topLED 24 W DC 24 V

4.8 W/m | 550 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82174	24 W	2750 lm	2700 K	Diffused	>90
82175	24 W	2930 lm	3000 K	Diffused	>90
82176	24 W	3110 lm	4000 K	Diffused	>90

Ribbon Plus

LED Strip | 700 topLED 96 W DC 24 V

19.2 W/m | 2222 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82207	96 W	11110 lm	2700 K	Diffused	>90
82209	96 W	11530 lm	3000 K	Diffused	>90
82210	96 W	12010 lm	4000 K	Diffused	>90

Ribbon Plus

LED Strip | 350 topLED 48 W DC 24 V

9.6 W/m | 1116 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82180	48 W	5580 lm	2700 K	Diffused	>90
82181	48 W	5750 lm	3000 K	Diffused	>90
82182	48 W	6300 lm	4000 K	Diffused	>90

Ribbon Plus

LED Strip | 700 topLED 48 W DC 24 V

9.6 W/m | 1122 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	CRI
82186	48 W	5610 lm	2700 K	Diffused	>90
82187	48 W	5880 lm	3000 K	Diffused	>90
82188	48 W	6260 lm	4000 K	Diffused	>90

Ribbon Plus WT

LED Strip | 600 topLED 65 W DC 24 V

13 W/m | 0 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	Control	CRI
C00419WHSDI	65 W	--	From 1800 to 3000 K	Diffused		>90

Ribbon Plus Dynamic White

LED Strip | 600 topLED 62.5 W DC 24 V

12.5 W/m | 0 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	Control	CRI
C00418WHDDI	62.5 W	--	From 1800 to 4000 K	Diffused		>90

Ribbon Plus RGBW

LED Strip | 600 topLED 96 W DC 24 V

19.2 W/m | 0 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	Control	CRI
C00417WHVDI	96 W	--	RGB-W 3000 K	Diffused		>90

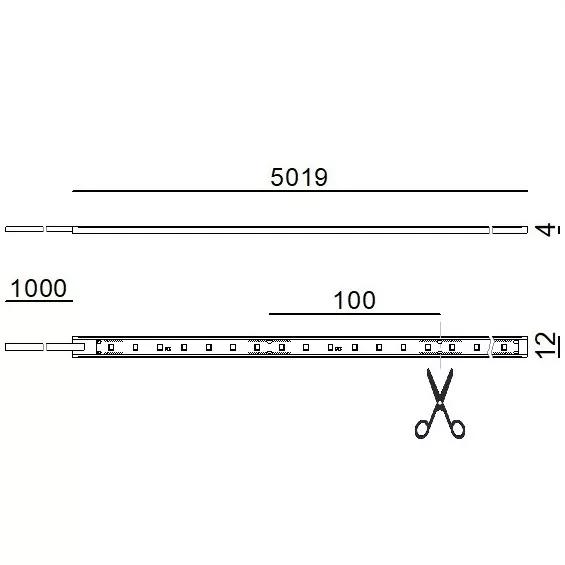

PU_C Plus

Discover more

1 product code

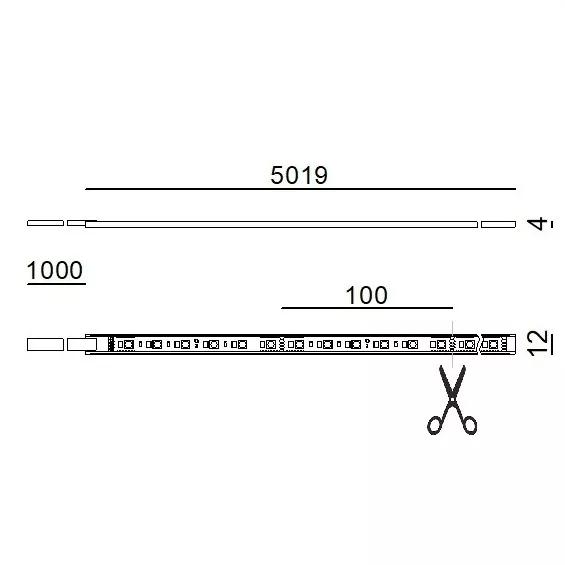

PU_C Plus RGBW

LED Strip | 600 topLED 96 W DC 24 V

19.2 W/m | 0 Lm/m

New

Code	Power (W)	Delivered lumens	CCT	Optic	Finishes	Control	CRI
C00466WHVDI	96 W	--	RGB-W 3000 K	Diffused	White		>90
