Snake_W1

7232

Indoor / Wall Mounted Lights

Wall Lights | 220-240 V

1 topLED 1.5 W DC - 2 W AC

IP
IP40
Optic
Diffused
Degrees
110.6°
CCT
3000 K
CRI
90
Delivered lumens
125 lm
Finishes
White
Installation position
Wall lights, Ceiling
Control
Efficiency
62.5 lm/W
Source Type
topLED

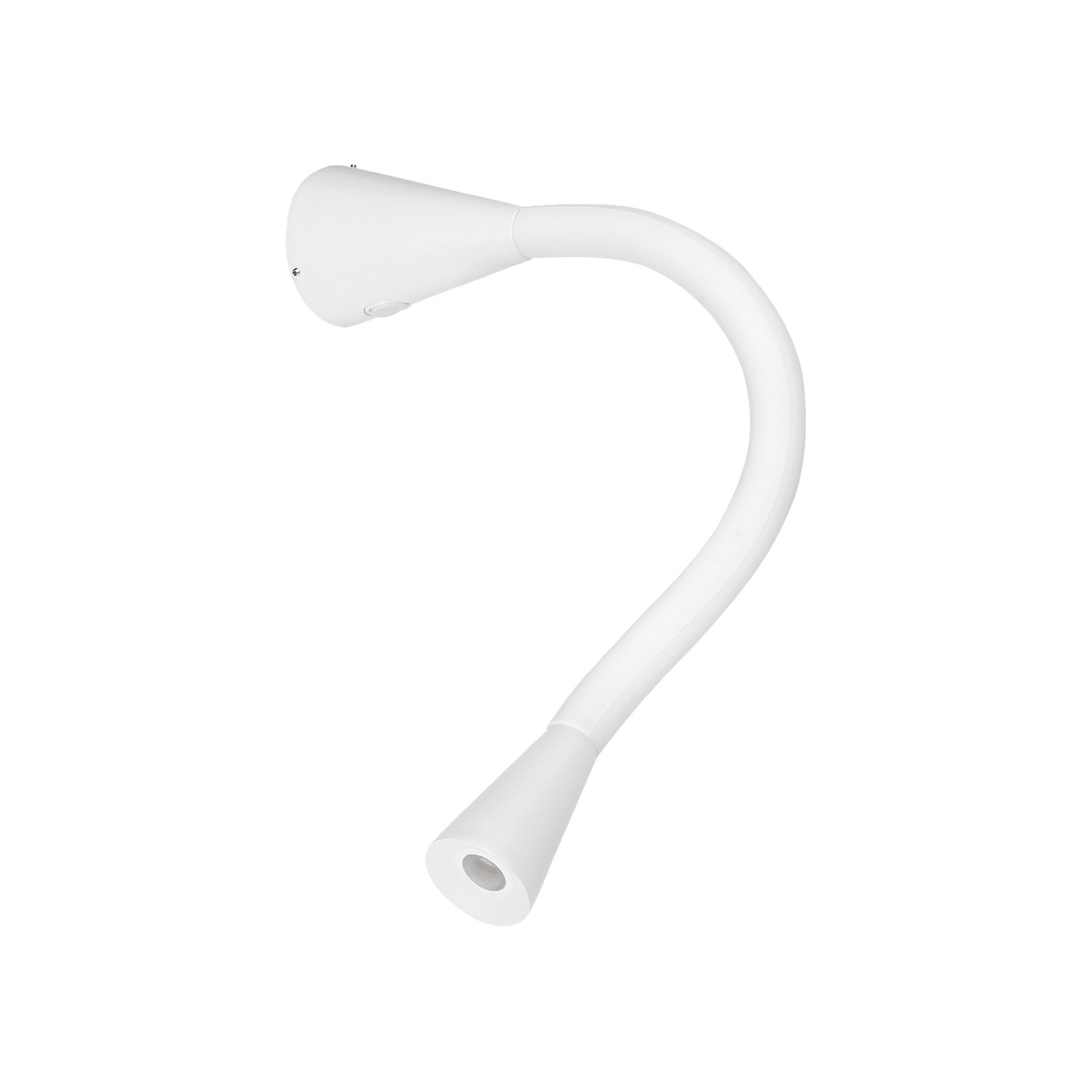

Single emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 178 lm, with a 118.7 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a white finish, processed by means of coating; the diffuser is made of PC with a satin finishing treatment; the mounting frame is made of aluminium, with a white finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.495 kg.

The total absorbed power is 2 W.

The device features protection class I and can be wall lights or ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Spares parts

.pdf

General

.pdf

Product image

.jpeg

Specification text

.txt

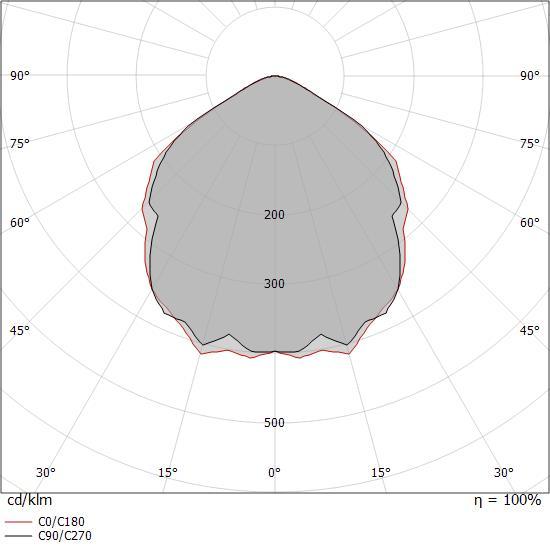

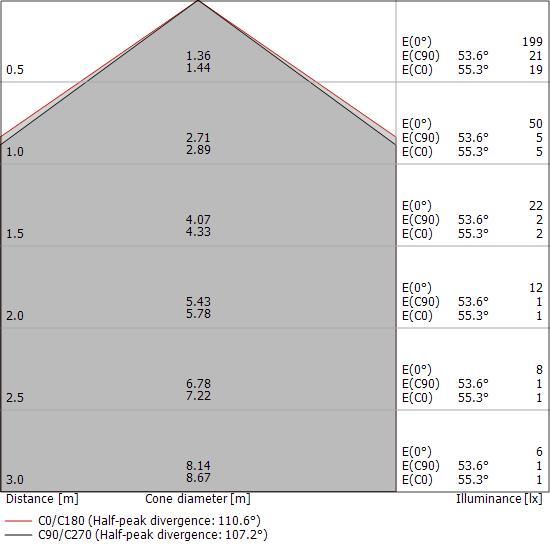

Photometric data

2D/3D Drawings
