Nitum_R
88421W30
Indoor / Downlights
Downlights
1 x powerLED 1 W DC 350 mA
| IP | IP44 |
|---|---|
| Óptica | Medium Wide Flood |
| Grados | 44.6° |
| CCT | 3000 K |
| CRI | 80 |
| Lumen de luminaria | 113 lm |
| Acabados | Blanco |
| Posición de instalación | Pared, Techo |
| Control | |
| Eficacia | 113.0 lm/W |
| Tipo de fuente | powerLED |
Descripción técnica

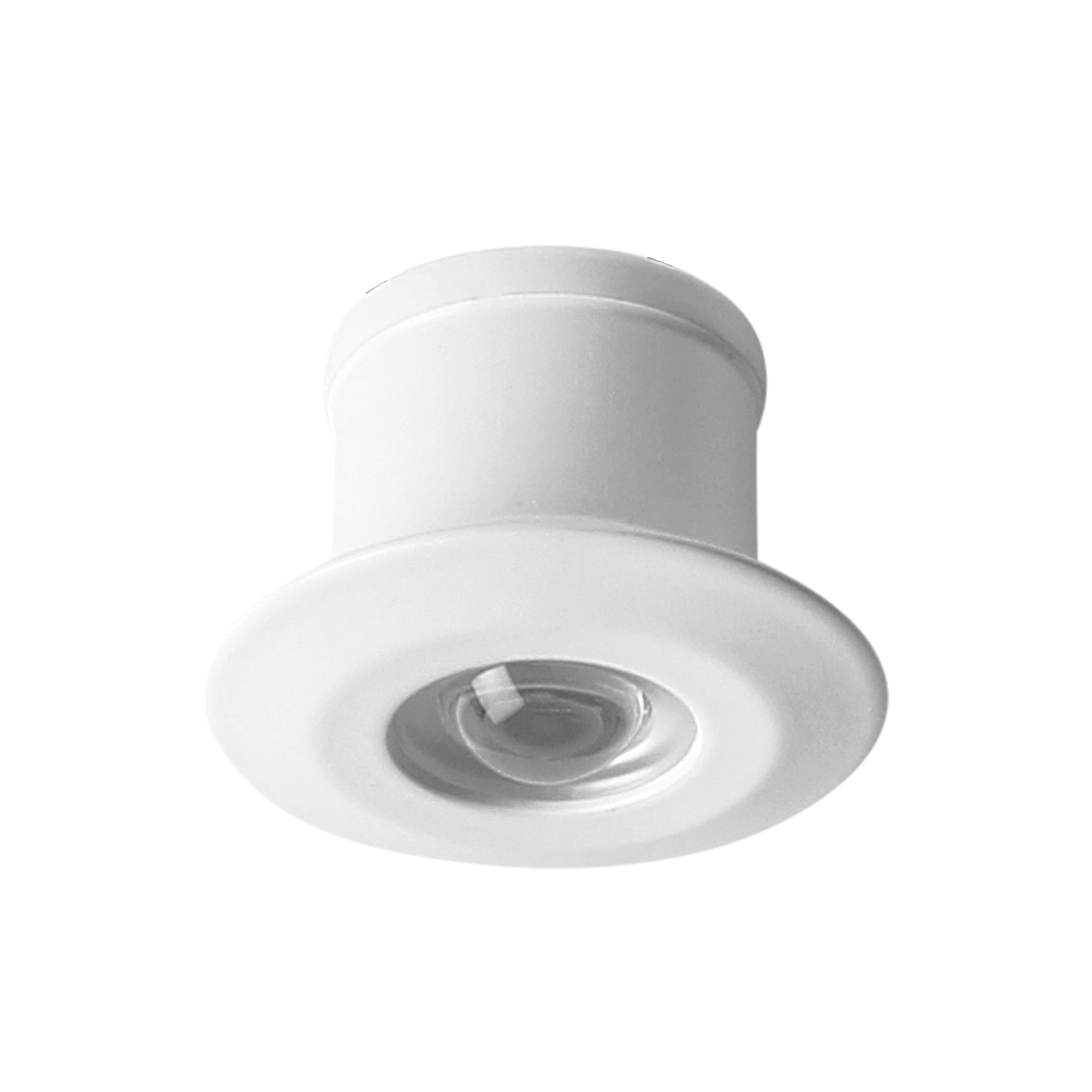

Single emission recessed downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 145 lm, with a 145.0 lm/W nominal luminous efficacy.
The device body is made of brass and features a white finish, processed by means of coating. The ingress protection degree is IP44; the total weight is of 0.058 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 1 W. The power supply cable is included and features a 0.12 m length.
The device features protection class III and can be wall lights or ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84915(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electrónica
Código 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Familia | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Código 99708
Slim - 0/1-10V Converter - 350mA 3-18V 1.6W | 1-10V Converter 24V DC
| Familia | Convertidor |
|---|---|
| IP | IP40 |
| Operation | CC |
Código 89144
Slim - On/Off Driver - 350mA 6.6V 1-2W | On/Off Driver 198~264V AC / 180~275V DC
| Familia | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Código 89145
Slim - On/Off Driver - 350mA 20V 3-6W / 350mA 20V 3.5-7W | On/Off Driver 198~264V AC / 180~275V DC
| Familia | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
