C0046NDI05000
Der Code C0046NDI05000 wird ab März 2025 gültig sein. Sie können mit diesem Code fortfahren oder den Code C00510WHNDI verwenden, der bis März 2025 gültig ist.Indoor / Flex Lights
LED Strip | 1 topLED 108 W DC 24 V
21.6 W/m | 2341 Lm/m
| IP | IP20 |
|---|---|
| Optisch | Diffused |
| CCT | 4000 K |
| CRI | 95 |
| Leuchten Lichtstrom | -- |
| Einbaulage | Wand, Decke |
| Kontrolle | |
| Quelle Typ | topLED |
Technische Beschreibung

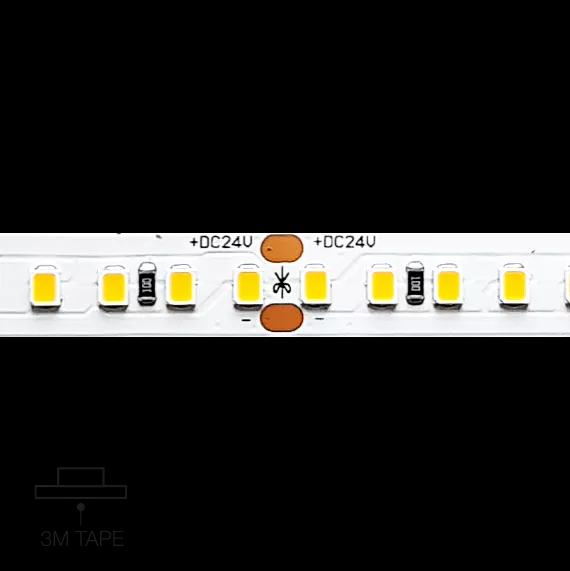

Single emission led strip for indoor application. The natural white LED light source with a diffused light distribution is composed of 800 stripled LEDs with CCT of 4000 K and a CRI 95; the source luminous flux is 12643 lm, with a 117.1 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish. The ingress protection degree is IP20; the total weight is of 0.17 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 108 W. The power supply cable is included and features a 0.2 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Profile
Sie haben 4 Produkte aus 7 gesehen
Elektronik
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Familie | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 83062
DALIFlat Push - Driver DALI PUSH 110 - 6.25A 24V 150W | DALI Push and Simply Dim Controller
| Familie | Controller |
|---|---|
| IP | IP20 |
| Operation | CV |
Code 83042
Berda Maxi - DALI converter 1-144W DC stripLED - 12A 12V / 1-288 W DC stripLED - 12A 24V | 1-10V Push and Simply Dim Controller
| Familie | Controller |
|---|---|
| IP | IP20 |
| Operation | CV |
Code 99722
Stormshield - DALI Driver - 1-120 W DC stripLED - 5A 24V | DALI Controller
| Familie | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
Sie haben 4 Produkte aus 6 gesehen
