Nautilus_RF
C00323SEQEM
Outdoor / Подводные Светильники
Подводные светильники
1 x powerLEDs 4 W DC 350 mA
| IP | IP68 |
|---|---|
| IK | 10 |
| Оптика | Elliptic M. Flood (30°÷39°) X (41°÷60°) |
| CCT | RGB-W 4000 K |
| Световой поток светильника | -- |
| отделка | сталь |
| Положение установки | Стена, Пол |
| Управление | |
| Тип источника | powerLEDs |
Техническое описание

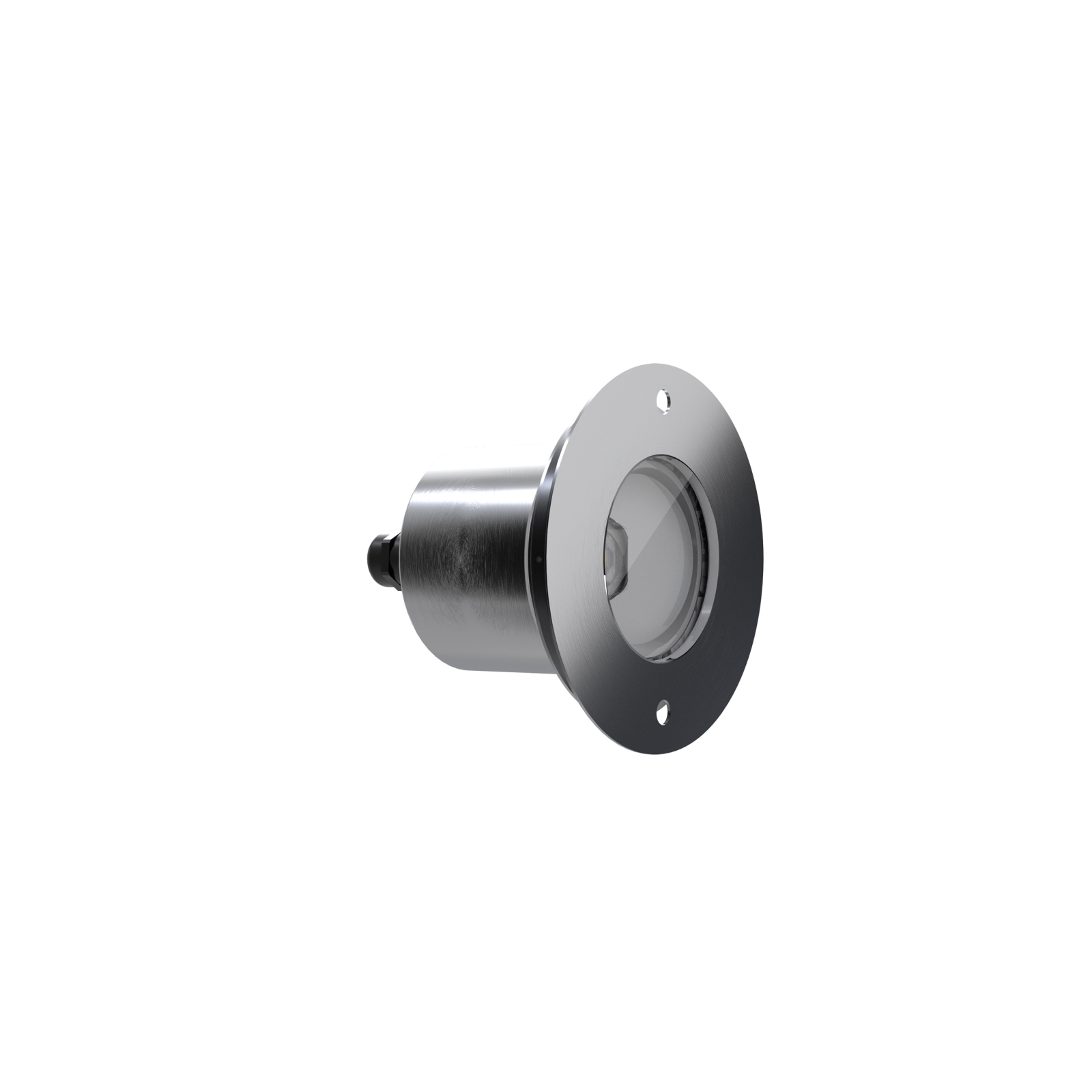

Single emission submerged for outdoor application. The RGBW - 4000 K LED light source with a elliptic m. flood (30°÷39°) x (41°÷60°) light distribution is composed of 1 powerled LEDs with CCT of RGB-W 4000 K.
The device body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.44 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 4 W. The power supply cable is included and features a 5 m length.
The device features protection class III and can be wall lights or floor-mounted with an outer casing, code 83140(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Электроника
Код 83010
Stormshield - On/Off Driver - 60W - 12V DC switching | On/Off Driver 90~264V AC / 127~370V DC 60 W
| Семья | Драйвер On/Off |
|---|---|
| IP | IP67 |
| Operation | CV |
Код 83187
Lumiquad PRO - DMX/RDM 4ch - 4ch x 3/6/12W - 250mA / 4ch x 4/8/16W - 350mA / 4ch x 6/12/24W - 500mA / 4ch x 8/16/33W - 700mA | Push and Simply Dim Multi Channel 4ch. 10.8~52.8V DC
| Семья | Мультиканал |
|---|---|
| IP | IP10 |
| Operation | CC |
