Navata_Optus
C01134BBNUS
Indoor / Прожектор
Прожектор
1 x powerLEDs 8.5 W DC 700 mA
| IP | IP20 |
|---|---|
| Оптика | Ultra Spot |
| градус | 6.2° |
| CCT | 4000 K |
| CRI | 90 |
| Световой поток светильника | 594 lm |
| отделка | чёрный |
| Положение установки | Стена, Потолок, Пол |
| Управление | |
| Эффективность | 69.9 lm/W |
| Тип источника | powerLEDs |
Техническое описание

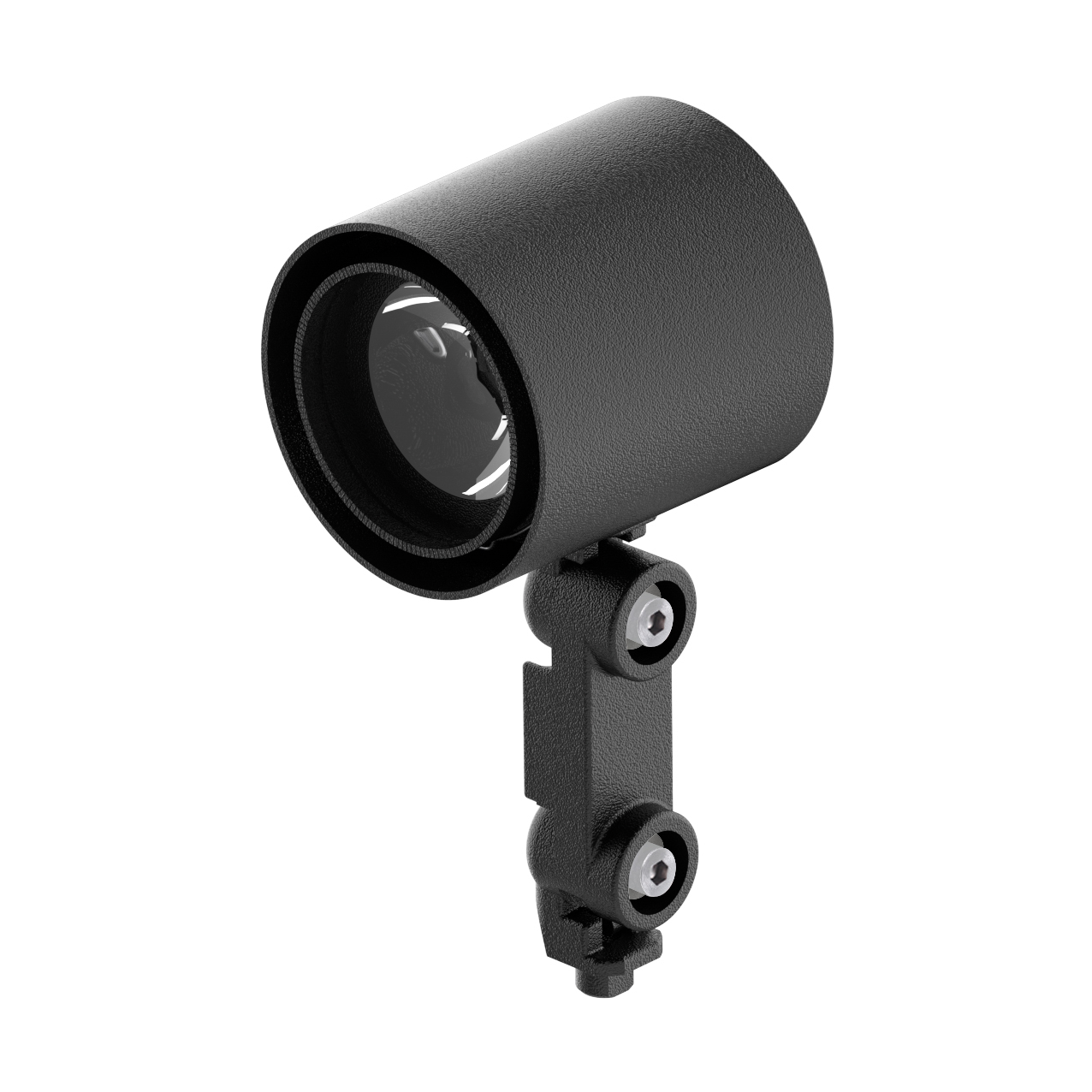

Single emission projectors for indoor application. The natural white LED light source with a ultra spot light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 788 lm, with a 92.7 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.380 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 8.5 W. The power supply cable is included and features a 0,2 m length.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Электроника
Код 99941
Navata fixing base DALI-2 from 300mA to 1050mA - 3W to 44W - Black | Push and Simply Dim Controller
| Семья | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
Код 99951
Navata DALI Control System - From 11 to 38 W DC 300mA - 1050mA - Black | DALI Multi Power 198~264V AC / 176~275V DC
| Семья | Мультимощность |
|---|---|
| IP | IP20 |
| Operation | CC |
Код 99943
Navata fixing base On/Off from 300mA to 1050mA - 11W to 38W - Black | Multi Power 198~264V AC / 176~264V DC
| Семья | Мультимощность |
|---|---|
| IP | IP20 |
| Operation | CC |
Код 99953
Navata ON/OFF Controlgear - From 11 to 38 W DC 300mA - 1050mA - Black | Multi Power 198~264V AC / 176~264V DC
| Семья | Мультимощность |
|---|---|
| IP | IP20 |
| Operation | CC |
