Extraordinary Light
Black and White finishes

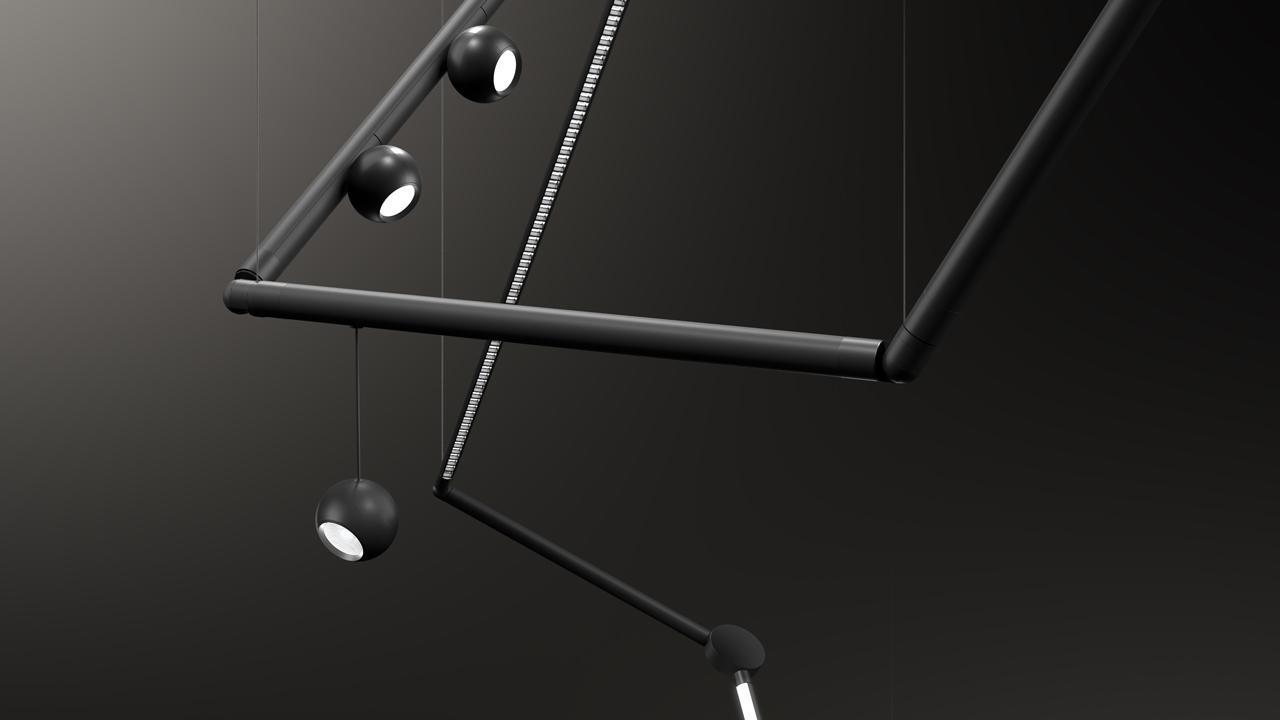

Node System is the new i-LèD 48V linear system, designed to overcome any architectural obstacle, allowing one to create unique and exclusive layouts. Elegant, beguiling black draws the gaze, and white embodies balance and lightness, like a breath of fresh air that sweeps into the room.
Download Brochure
360° Rotation
Ideal for every context
The distinctive feature of the Node System lies in the absolute freedom of movement, with the ability to rotate 360 degrees and orient itself in any direction, without any constraints. This versatility makes it an ideal lighting system for any context, it plays with the surrounding architecture and creates original and evocative atmospheres.
Limitless Versatility
Customizable lighting solutions
Node System offers a complete range of accessories and light modules designed to ensure endless composition possibilities. Whether installed on the wall, ceiling or as a pendant, every element is designed to respond to specific technical requirements, transforming the system into a versatile and highly customisable solution.

One Click Connection
Pogo-Pin contacts
Electrical current and the DALI signal transmission are managed by the revolutionary Pogo Pin, precision spring contacts that ensure stable and uninterrupted transmission. This cutting-edge technology eliminates the need for complex wiring, enabling clean, compact installations.

Junction and Connection Accessories
Suspended and wall versions
The Node System junction and connection accessories ensure electrical continuity and optimal DALI signal transmission between linear modules, guaranteeing structural stability. They provide maximum flexibility, allowing the system to rotate and adjust freely at 360° in space. Installation options include suspended, wall-mounted, or ceiling-mounted configurations, making it dynamic and versatile for any design need.
Track Module and Blank Module
Ideal for dynamic environments
Node System’s electrified linear module allows for highly versatile and practical installation of spotlight modules and pendant spotlights. The specific structure ensures easy positioning and movement along the track for seamless adaptation to any design requirement. Node System’s electrified linear module allows for highly versatile and practical installation of spotlight modules and pendant spotlights. The specific structure ensures easy positioning and movement along the track for seamless adaptation to any design requirement.

Comfort Light Module
Maximum visual comfort
The Comfort linear module is designed to offer a high-level lighting experience through the optical cell system with a black finish that drastically reduces glare with UGR<19 values, thus ensuring excellent visual comfort. Available in single or double emission versions, in lengths from 628 mm (12W DC) to 1748 mm (64W DC), the optional accessories allow a choice of flexible wall, ceiling or pendant installations. Ideal for offices or spaces where high visual comfort is required.
UGR<19
Single-emission Comfort Module
Room 4x4 m / Room height 2.8 m / Adjustable desk 1000x600 mm / Light assembly height from ground 2.8 m / Single emission module L.1188 mm - 24W DC - 3000K - CRI90 (76381W50)

A.
Reference height 740 mm / Average lighting on worktop 500 lx

B.
Reference height 1190 mm / Average lighting on worktop 730 lx

UGR<19
Double-emission Comfort Module
The Comfort linear module with double emission is ideal for office applications, ensuring correct illuminance on the worktop with values above 500 lx while the Comfort optical cells guarantee an UGR value of

Room 5x5 m / Room height 3 m / Desk 1600x800 mm Light assembly height from ground 2 m / Model 76385W61

Скачать все изображения
.zip
Projector Module
Projector and suspended projector
Available in two diameters, 70 mm and 80 mm, and with power from 5W DC to 11W DC, they blend seamlessly into a variety of settings thanks to the elegant black or white finishes. There are three different types of light distribution: Spot, Medium Flood and Wide Flood to create specific, customised effects.
Rotation on every axis
Easily adjustable head
The head of the Node System projectors can be easily adjusted on all the axes, obtaining extremely precise points of light. The intuitive orientation on every axis ensures optimal customisation of the lighting, adapting it to the specific needs of every environment.
Freedom of movement
Precise and versatile lighting
The track module allows the spotlights to be freely moved along the track to ensure precise positioning - perfect for adapting to project requirements. They can also be rotated to increase their effect, making them ideal for pendant systems and highlighting vaults and ceilings with tailored lighting.
Скачать все изображения
.zipDiffused Light Module
Diffused and adjustable light
The luminous module with diffused light provides uniform and comfortable illumination. Thanks to the innovative design, the modules can rotate 360° seamlessly, offering maximum flexibility in light orientation. With the ultra-fast pogo-pin connection system, Node System simplifies module installation. Available in lengths of 629 mm, 1188 mm, and 1748 mm, with power ratings from 11W DC to 32W DC, the diffused light modules of Node System offer endless compositional possibilities. A perfect balance of technology and design, capable of creating dynamic and exclusive lighting scenarios.
Скачать все изображения
.zipRubber_O
360° of total brightness and flexibility
Made with a special highly flexible material, this device allows the creation of unique and scenographic installations. Its versatility allows you to shape the light according to your creative vision, ensuring a stunning impact. With Rubber_O, form meets function to integrate into any type of project, in any type of architecture.
Discover Rubber_OCreative flexibility
Per esprimere al massimo le potenzialità creative di Rubber_O, abbiamo sviluppato un’ampia gamma di accessori. Grazie alla facilità di installazione, il sistema si integra perfettamente con il Node System, permettendo di creare composizioni scenografiche su pareti e soffitti. La sua versatilità consente un'armoniosa adattabilità all’architettura dello spazio, offrendo soluzioni dinamiche e personalizzabili per ogni progetto di illuminazione.
Скачать все изображения
.zipСемьи Node System
Node System_L Comfort Double-Emission
16min 48 W - max 64 W
Diffused + Medium Wide Flood
2700 K - 3000 K
