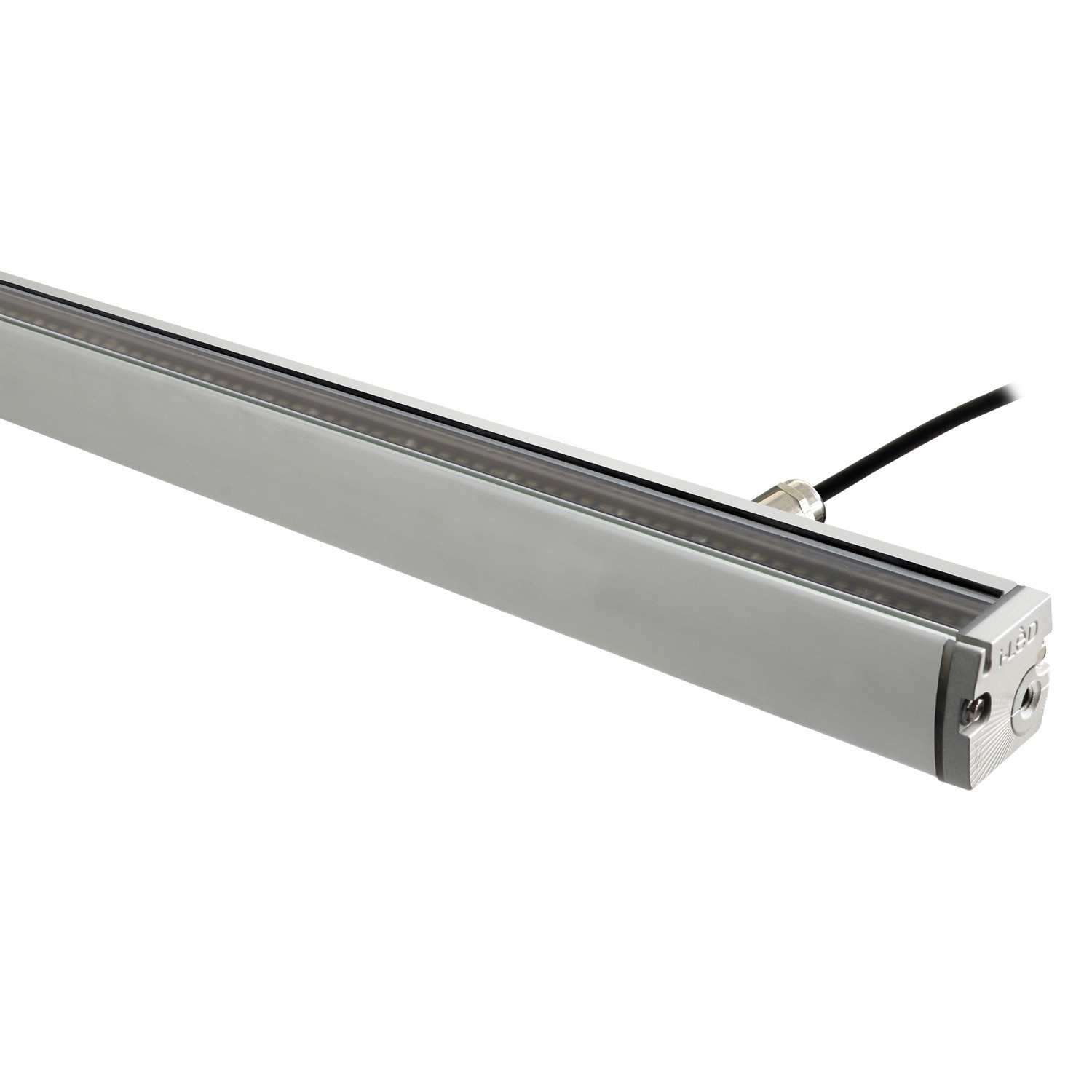

Xenia_W
C00518AMN3F
Outdoor / Настенный Светильник, Линейные Элементы
Настенный светильник - Линейные элементы
96 topLED 11 W DC 24 V
| IP | IP66 |
|---|---|
| IK | 07 |
| Оптика | Elliptic Flood (20°÷29°) X >60° |
| градус | 91° |
| CCT | 4000 K |
| CRI | 80 |
| Световой поток светильника | 1715 lm |
| Положение установки | Стена, Потолок, Пол |
| Управление | |
| Эффективность | 155.9 lm/W |
| Тип источника | topLED |
Техническое описание
Single emission wall lights or lines for outdoor application. The natural white LED light source with a elliptic flood (20°÷29°) x >60° light distribution is composed of 96 topled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 2056 lm, with a 186.9 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 0.7 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 11 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Электроника
Код 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Семья | Драйвер On/Off |
|---|---|
| IP | IP40 |
| Operation | CV |
Код 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Семья | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Код 99331
Reson_150 - On/Off Driver 24V 150W 24V | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Семья | Драйвер On/Off |
|---|---|
| IP | IP65 |
| Operation | CV |
Код 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Семья | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
Вы видели 4 продуктов из 5
